Company History |
Geophysical Logging |
GIC Water Systems utilizes
the latest well and borehole logging equipment on the market
with the capability of conducting logging surveys down to 2000
feet. Borehole geophysical surveys are conducted with
equipment manufactured by Robertson Geologging Limited.
Borehole geophysical survey data can be provided upon request in
ASCII format on a CD-ROM disk, or as finished color copies.
In support of our aquifer testing projects, GIC Water Systems
also owns several gauged and absolute pressure transducers and
data loggers from In-Situ, turbidity meters, and others water
quality meters / test kits.
The following is a list of geophysical sondes currently owned
by GIC Water Systems. Other sondes can be obtained by GIC
if needed. |
Geophysical Logs:
8, 16, 32, 64 inch Normal Resistivity and Single Point Resistivity, Natural Gamma, Self Potential, Temperature and Fluid
Conductivity, 3- Arm Caliper Log, and a High Resolution Impeller Flowmeter
Log.

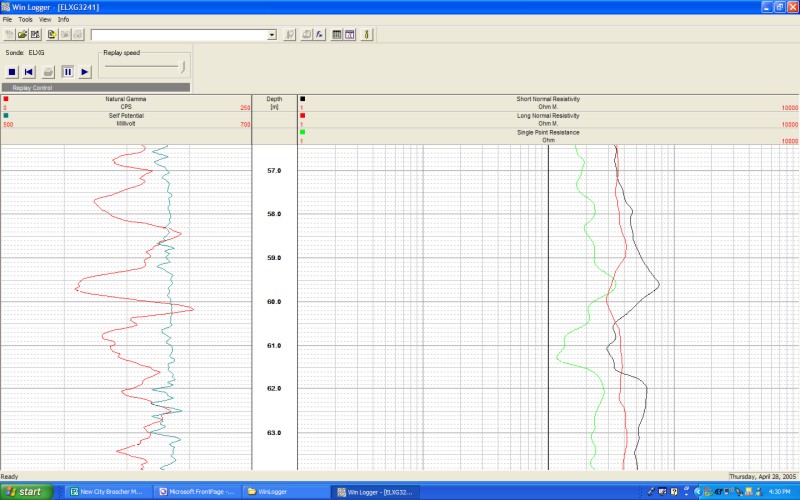

Below is an example of a log recorded using Robertsons Win Logger
software.
|
